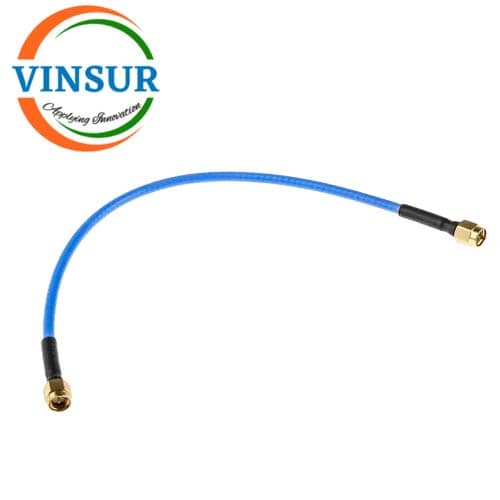

VSW250081-CA — SMA MALE STRAIGHT TO SMA MALE STRAIGHT FOR RG402 SEMI FLEX CABLE ASSEMBLY LENGTH OF 1M
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG402 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (male) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Orientation 2 (body) | Plug (male) |
| Gender 2 | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Impedance | 50 Ohms |
| Frequency | DC-18GHz |
| VSWR | ≤1.2 |
| Cable Length | 1meter |
| CABLE SPECIFICATION | |
| Cable Type | RG402 |
| Cable Diameter | 4.10 mm / 0.161 in |
| Suitable for frequencies | up to 20 GHz |
| Weight | 52 kg/km |
| Temperature rating | -40 / +165°C |
