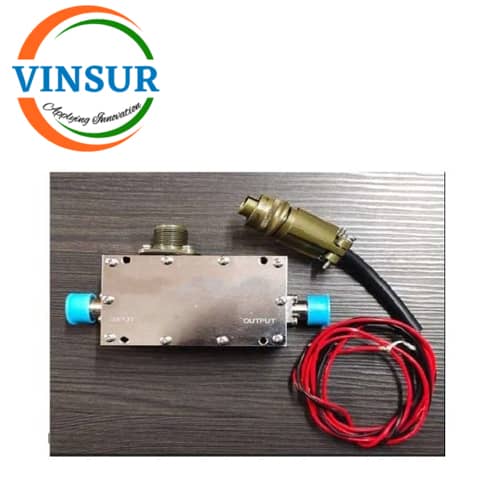

VSW-SBLNA-2.3 — S-BAND LNA

SKU: VSW-SBLNA-2.3 Category: RF Filter Tags: Frequency 2200-2300MHz, RF PASSIVE DEVICE, S-Band LNA Filter

Description

SPECIFICATION
Frequency Range	2200-2300 MHz
Gain	35±0.5dB
Gain Variation Over Freq.Band	±0.5dB
Noise figure	>1 dB
Supply Voltage	+12V DC
Supply terminals	2 Pin Circular Connector (JSI 3106F 10SL-4P 1122)
Supply Current	150mA max
Power Output Level	+20dBm
Input/output VSWR	1.8:1 Min
Connectors	N-TYPE(Female)
Dimension	80.5 x 48.1 x 32.5 mm
Environmental Condition	IP67 STD
