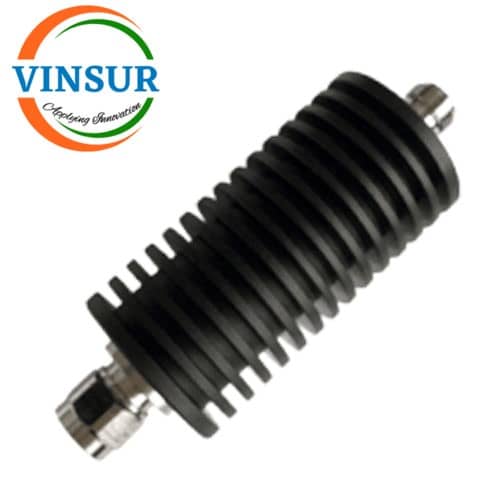

VSW-ATT50-XX-18-NMF — 50W RF ATTENUATOR DC-18GHZ, N MALE TO N FEMALE

  • RF Attenuator
  • RF Coaxial Attenuator
  • DC-18GHz
  • Attenuation(10-20dB)
  • N Male To N Female

Click Here to get Datasheet

SKU: VSW-ATT50-XX-18-NMF Category: Tags: , , , ,
Description
ELECTRICAL & MECHANICAL SPECIFICATIONS
Attenuation(dB) 10 20
Accuracy(dB) ±0.9 ±1.0
Freq(MHz) DC-18GHz
VSWR ≤1.45
Power Rating(W) 50W(average)
Impedance 50 ohm
Connector N Male to N Female
Color Black
Operating Tem(℃) -35°C to +65°C
Weight(kg) 0.36(approx.)
