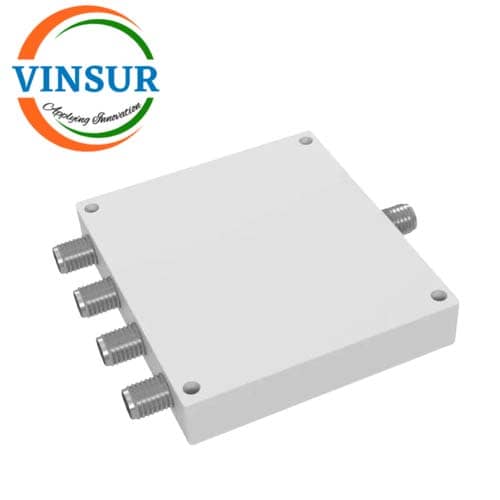

VSW-4PDS-2-8-SMAF — 4WAY POWER DIVIDER (2-8GHZ) SMA FEMALE

SKU: VSW-4PDS-2-8-SMAF Category: RF Power Divider Tags: 2-8GHz, 4-way, RF PASSIVE DEVICE, RF Power Divider, SMA Female

Description

SPECIFICATION
Frequency	2-8GHz
Impudence	50Ω
Operating Temperature Range	-40ºC to +85ºC
Phase Tracking	± 6º
Amplitude Tracking	± 0.6 dB
Power	5 Watts average (divider port) 0.25 Watts average (combiner ports)
Insertion Loss	1.4dB maximum (Split6.0dB)
	0.4 dB typical @ 2 GHz
	0.6 dB typical @ 6 GHz
	0.8 dB typical @ 8 GHz
Isolation	17 dB minimum
VSWR	1.45:1 maximum < 1.3:1 typical
Connector Type	SMA Female
