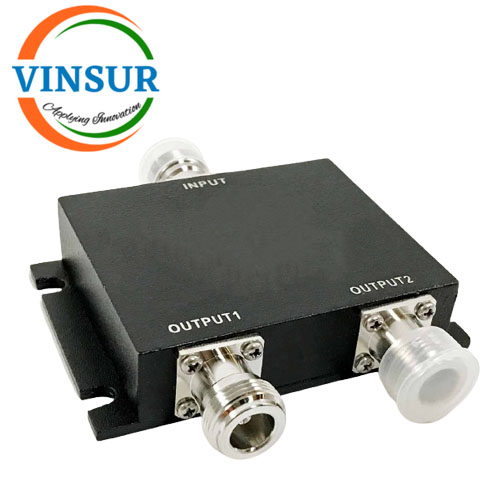

VSW-2PDC-2.6-NF — 1-2 WAY POWER DIVIDER (500-2600MHz)

  • RF Passive Device
  • RF Power Divider
  • 500-2600MHz
  • 1:2 way
  • N-female

Click Here to get Datasheet

SKU: VSW-2PDC-2.6-NF Category: Tags: , , , ,
Description
SPECIFICATION
Frequency 500-2600MHz
Impudence 50Ω
Split Loss(dB) 3.0
Temperature -35℃~+75℃
Colour Black
Temperature -30°C +70°C
Power 100W
Insertion Loss ≤0.8dB
Isolation 20 min
VSWR ≤1.30
Connector Type N Female
Application Indoor,IP60
