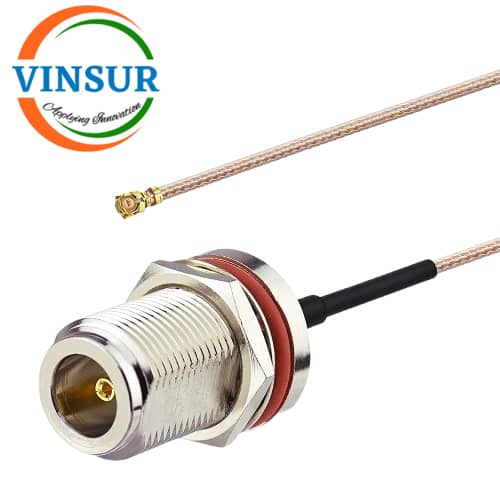

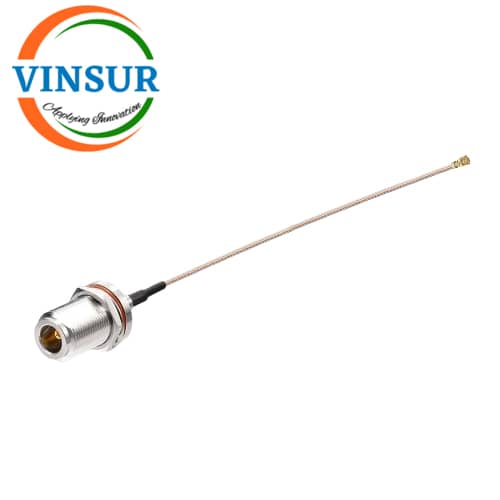

VSW250190-CA — N-TYPE FEMALE BULKHEAD STRAIGHT TO UMCC MALE RIGHT ANGLE FOR RG178 CABLE ASSEMBLY 350mm
- RF Cable Assembly
- N-type Cable Assembly
- N-type to UFL Cable Assembly
- UFL 1.13 Cable
Description
| SPECIFICATION | |
| RF Series 1 | N |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | UMCC |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ohms |
| VSWR | 1.35:1 |
| Operating Voltage (DC) | 300 Vdc |
| Cable Type | RG178 Coaxial Cable |
| Insertion Loss (Typ.) | 3.54 dB/m |
| Return Loss (Max.) | 16.54 dB |
| Length | 350mm(35cm) |
| Temp (Max Degrees Celsius) | -40°C |
| Temp (Min Degrees Celsius) | +85°C |
