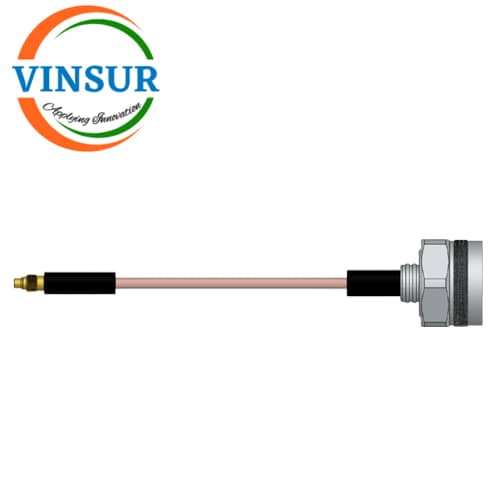

VSW250186-CA — MMCX MALE STRAIGHT TO N MALE STRAIGHT FOR RG316 SINGLE SHIELDED CABLE ASSEMBLY LENGTH OF 100MM
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to N Cable Assembly
- FOR RG316
Description
| SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N-type |
| Gender 2 | Straight |
| Orientation 2 (body) | Plug (Male) |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC-6Ghz |
| Impedance | 50 Ohms |
| Cable Type | RG316 |
| VSWR | ≤1.3 |
| Length | 10CM(100MM) |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
