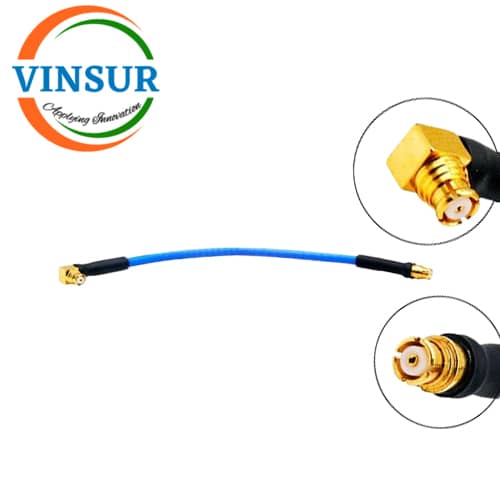

VSW250181-CA — SMP FEMALE STRAIGHT TO SMP FEMALE RIGHT ANGLE FOR RG 405 T-FLEX CABLE ASSEMBLY LENGTH OF 32MM

SKU: VSW250181-CA Category: SMP TO SMP CABLE ASSEMBLIES Tags: RF Cable Assembly, SMP Cable Assembly

Description

SPECIFICATION
RF Series 1	SMP
Gender	Jack(Female)
Orientation1 (body)	Straight
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium copper
RF Series 2	SMP
Gender 2	Jack(Female)
Orientation 2 (body)	Straight
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium copper
Frequency	DC to 18Ghz
VSWR	≤1.2
Length	32mm
Cable type	RG405 T-flex
CABLE SPECIFICATION
Cut-off Frequency		60GHz
Impedance		50 ohms
Cable Diameter		0.104” (2.6416mm)
Inner Conductor		Solid Silver- Plated Copper
Inner Shield		Silver plated copper flat ribbon
Dielectric		Solid PTFE
Outer Conductor		Silver plated copper braid
Jacket		FEP (BLUE)
Weight (lbs./ft)		0.015 (0.022 (kg/m)
Temperature Range		-65°C to +125°C
Operating Voltage		1.5 kV Volts RMS
