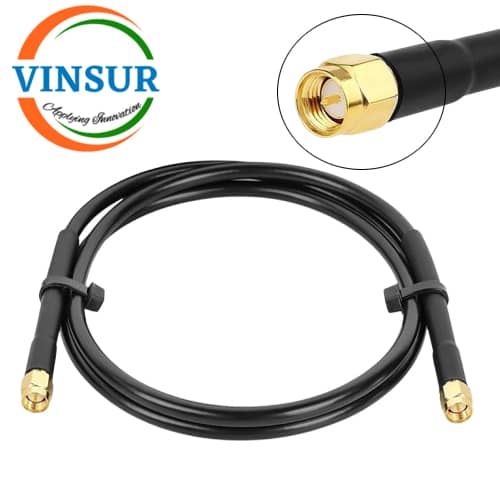

VSW250173-CA — SMA MALE STRAIGHT TO SMA MALE STRAIGHT FOR RG58 BELDEN CABLE ASSEMBLY LENGTH OF 2METER
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG58 Belden Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Length | 2meter |
| Frequency | DC to 5Ghz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG58 Belden |
| Cable Diameter | 4.95mm |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ohms |
| Operating Temperature | -40°C to +80°C |
