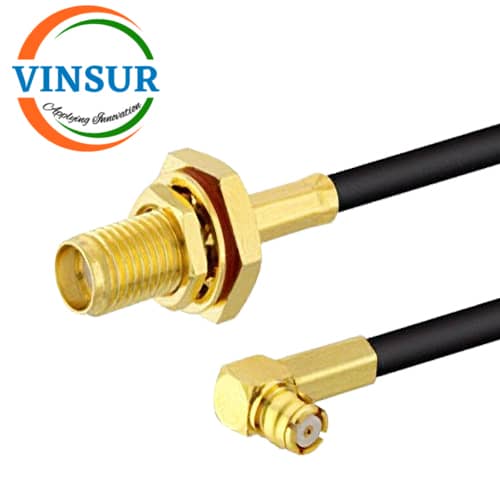

VSW250123-CA — SMA FEMALE STARIGHT BULKHEAD TO SMP FEMALE RIGHT ANGLE FOR LMR-100 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMP Cable Assembly
- LMR400 Cable
Description
| SPECIFICATION | |||
| RF Series 1 | SMA | ||
| Gender | Plug(Male) | ||
| Orientation1 (body) | Straight | ||
| Body Finish | Gold | ||
| Body Material | Brass | ||
| Contact Finish | Gold | ||
| Contact Material | Brass | ||
| RF Series 2 | SMP | ||
| Gender 2 | Jack(Female) | ||
| Orientation 2 (body) | Right Angle | ||
| Body Finish | Gold | ||
| Body Material | Brass | ||
| Contact Finish | Gold | ||
| Contact Material | Brass | ||
| Mounting Features | Bulkhead | ||
| Frequency | DC to 3Ghz | ||
| VSWR | ≤1.2 | ||
| CABLE SPECIFICATION | |||
| Cable Type | LMR100 | ||
| Cable Diameter | 2.79mm | ||
| Frequency | DC to 8Ghz | ||
| Impedance | 50Ω | ||
| Length | 6inch | ||
| Operating Temperature | -40°C to +85°C | ||
