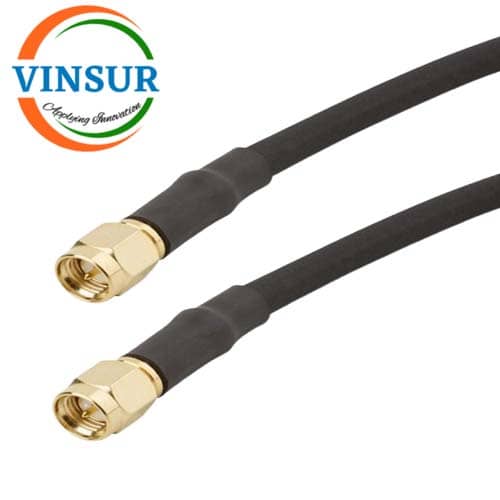

VSW250112-CA — SMA MALE STARIGHT TO SMA MALE STARIGHT LMR-195 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- LMR195 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| VSWR | ≤1.2 |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ω |
| Cable Diameter | 4.95 |
| Cable Type | For LMR195 |
| Length | 6 Inch |
| Temp (Max Degrees Celsius) | -40°C |
| Temp (Min Degrees Celsius) | +85°C |
