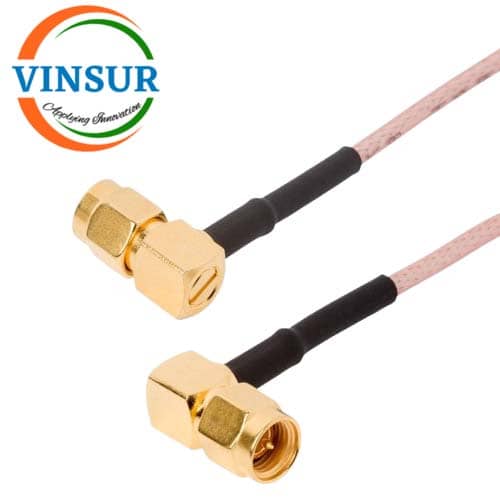

VSW250101-CA — SMA MALE RIGHT ANGLE TO SMA MALE RIGHT ANGLE RG-316 CABLE ASSEMBLY LENGTH OF 1METER
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG-316Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG316 |
| Length | 1 meter |
| Temp (Max Degrees Celsius) | -65°C |
| Temp (Min Degrees Celsius) | +165°C |
