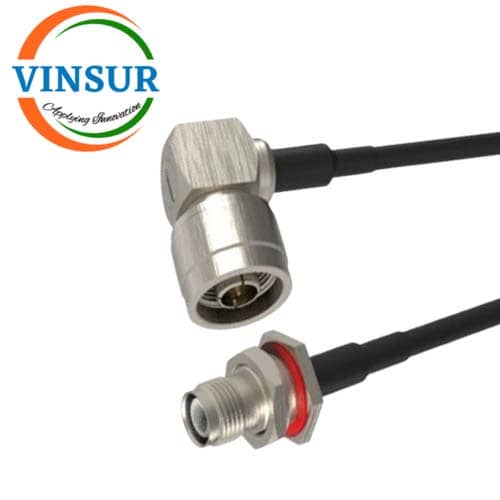

VSW250092-CA — N-TYPE MALE RIGHT ANGLE TO RP TNC FEMALE STRAIGHT BULKHEAD FOR LMR-240 CABLE ASSEMBLY LENGTH OF 1METER
- RF Cable Assembly
- N-type Cable Assembly
- N-type to TNC Cable Assembly
- LMR-240 Cable
Description
| SPECIFICATION | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | RP TNC |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | 6GHz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Length | 1m |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Type | LMR-240 |
| Cable Diameter | 4.95mm |
| Frequency Range | 8.5GHz |
