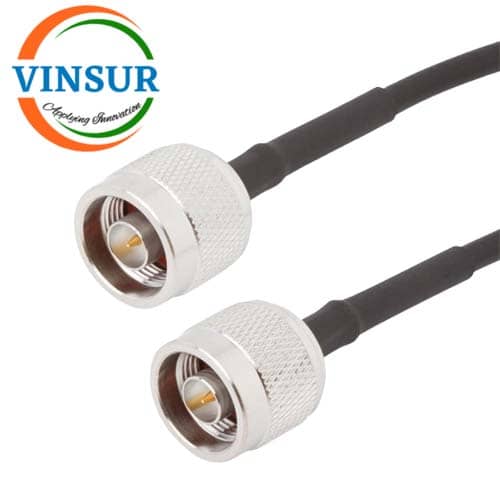

VSW250088-CA – N MALE STRAIGHT TO N MALE STRAIGHT FOR RG58 CABLE ASSEMBLY LENGTH OF 1METER
- RF Cable Assembly
- N-type Cable Assembly
- N-type to N-type Cable Assembly
- FORÂ RG58 Cable
Description
| SPECIFICATION | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | 3GHz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Length | 1m |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Type | RG58 |
| Cable Diameter | 4.95mm |
| Frequency Range | 3GHz |
