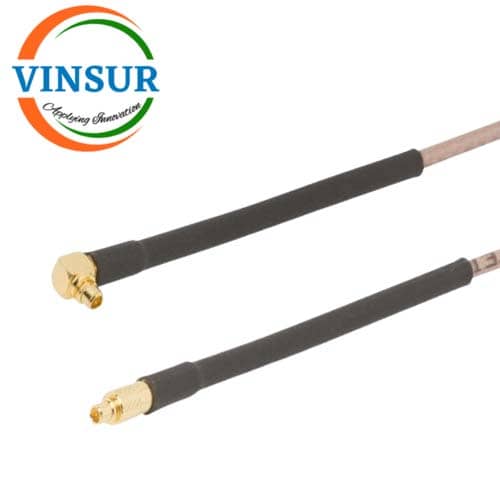

VSW250074-CA — 50 OHMS MMCX MALE STRAIGHT TO MMCX MALE RIGHT ANGLE FOR RG 316 CABLE ASSEMBLY LENGTH OF 12INCH
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to MMCX Cable Assemblies
- FOR RG316 Cable
Description
| SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | MMCX |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG316 |
| VSWR | ≤1.2 |
| Length | 12Inch |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
