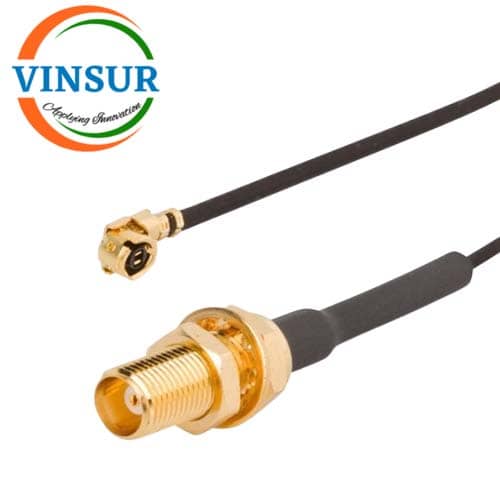

VSW250060-CA — AMC RIGHT ANGLE MALE TO MCX STRAIGHT BULKHEAD FEMALE 1.13 MM 50 OHM 250 MM
- RF Cable Assembly
- MCX Cable Assembly
- MCX to AMC Cable Assembly
- FOR RG1.13
Description
| SPECIFICATION | |
| RF Series 1 | MCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | AMC |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| Cable Type | 1.13 mm Micro-Cable |
| Length | 250mm |
| Temp (Max Degrees Celsius) | -40°C |
| Temp (Min Degrees Celsius) | +90°C |
