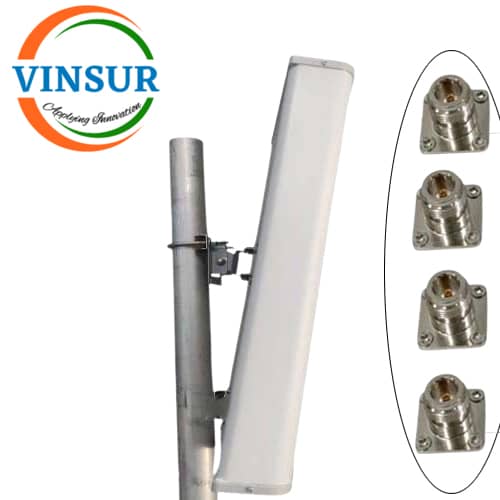

VSW250039-AN — SECTORIAL DIRECTIONAL ANTENNA(3300-3500MHZ GAIN 12-14dBi)
- RF Antenna
- Sector Antenna
- 3300-3500MHz
- 12-14 dBi Gain
Description
| ELECTRICAL SPECIFICATION | ||||
| Channels | C1 | C2 | C3 | C4 |
| Frequency Band | 3300-3500MHz | |||
| Gain | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 12-14Dbi | |||
| Impedance | 50Ω | |||
| No. of Ports | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1 | |||
| Polarization | ±45° | |||
| Horizontal HPBW | 65°±5 | |||
| Vertical HPBW | 12°±2 | |||
| Electrical Down tilt |                                          0° | |||
| Upper Side Lobe Suppression (Peak to 20°) |                                         15dB | |||
| Front-to-Back Ratio @ 180°±30° |                                         28dB | |||
| Cross-polarization Ratio over HPBW | 20dB | |||
| VSWR | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1.3 | |||
| Return Loss | Â -16dB | |||
| Max. Input Power per Port | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 100W | |||
