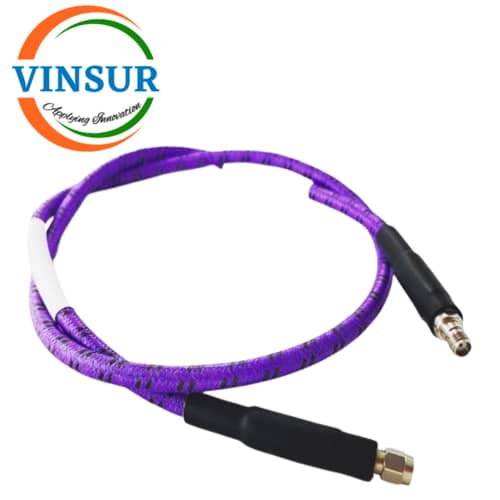

VSW250019-TCA — SMA MALE, STRAIGHT TO SMA FEMALE, STRAIGHT 1METER TESTING CABLE ASSEMBLY
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 26.5Ghz |
| Impedance | 50 Ohms |
| Insertion Loss | 2.6dB Max |
| Cable Type | Armoured |
| VSWR | ≤ 1.30 |
| Length | 1Meter |
| Cycling time | Â 500 |
