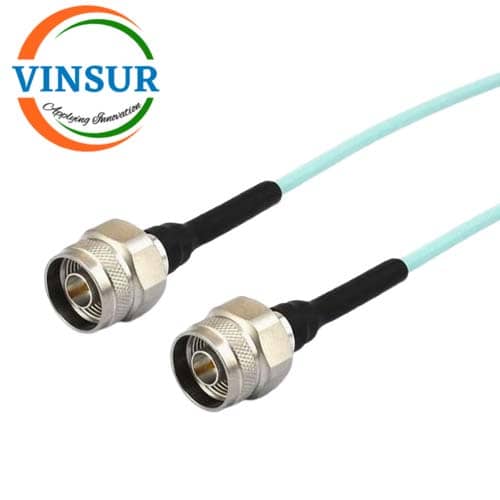

VSW250010-TCA — N MALE STRAIGHT TO N MALE STRAIGHT TESTING CABLE ASSEMBLY LENGTH OF 1mtr
- RF Testing Cable Assembly
- N-Type Testing Cable Assembly
- N to N Cable Assembly
- 50Ω
Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency | DC to 18Ghz |
| Impedance | 50 W |
| Return Loss/VSWR | 1.25 to 18 GHz |
| Phase Stability vs. Flexure | 5°@ 18GHz |
| Shielding Effectiveness | <-100dB @ 1GHz |
| Cable Length | 1meter |
| Power Handling | 780watt @ 5GHz at sea level,VSWR1.0 |
| Temperature Range | -40°C to +165°C |
| CABLE SPECIFICATIONS | |
| Center Conductor | Silver plated copper |
| Dielectric | Low Density PTFE |
| Jacket | FEP |
| Capacitance(pF/m) | 80.4 |
| Velocity of propagation(%) | 83 |
| Min. bending radius(mm) | 31.75 |
| Jacket Diameter(mm) | 7.90± 0.13 |
