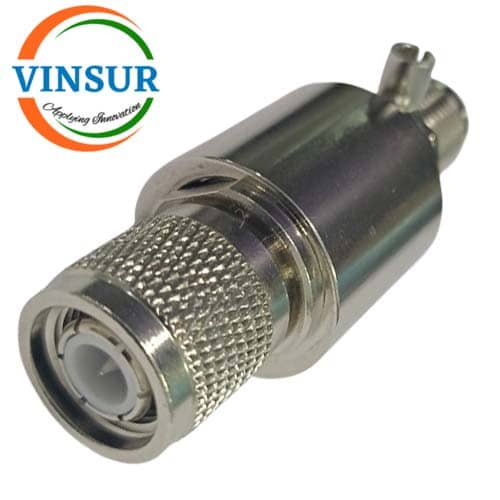

VSW-TNC-MF-SGA-ADP — 50 OHMS TNC MALE TO TNC FEMALE BULKHEAD SURGE ARRESTERS
- RF Surge Lightning Arrester
- TNC to TNC Adapter
- Male to Female
- Bulkhead
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | TNC |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 50Ω |
| Voltage Protection Level(Up) | ≤600V |
| Maximum output power | 100W |
| Insertion Loss(dB) | <0.2 |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR(Max) | ≤1.18 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
