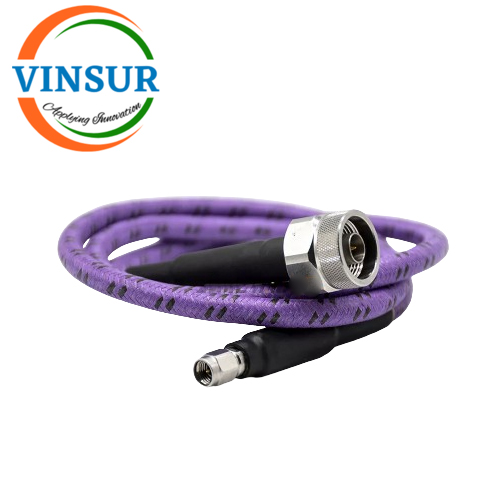

VSW-TCA-NSMA-18-L5 SMA MALE, STRAIGHT TO N MALE, STRAIGHT 5METER TESTING CABLE ASSEMBLY
- RF Testing Cable Assembly
- SMA Testing Cable Assembly
- SMA to N Testing Cable Assembly
- 50Ω
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | N |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 18Ghz |
| Impedance | 50 Ohms |
| Cable Type | Armoured |
| VSWR | 1.25:1 |
| Length | 5Meter |
| Cycling time | Â 500 |
