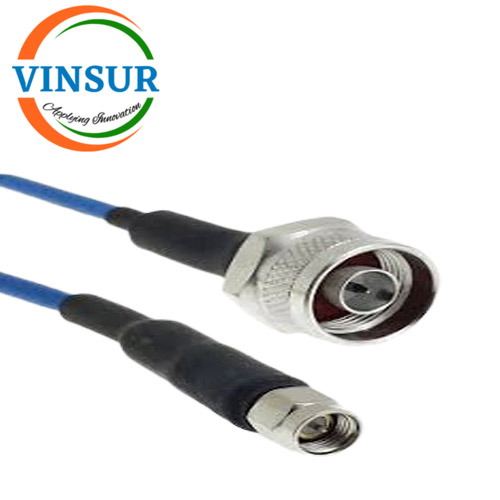

VSW-SM-NM-SS402-6 18GHZ PRECISION RF LOW LOSS COAXIAL CABLE ASSEMBLIES WITH STAINLESS STEEL CONNECTORS

SKU: : VSW-SM-NM-SS402-6 Category: SMA to N Testing Cable Assembly Tag: Rf Testing Cable Assembly

Description

SPECIFICATION
RF Series 1	N
Gender	Plug (male)
Coupling	Threaded
Orientation1 (body)	Straight
Termination style	Crimp
RF Series 2	SMA
Orientation 2 (body)	Straight
Gender 2	Plug (male)
Impedance	50 Ohms
Frequency	18 GHz
Insertion Loss	0.66 dB/ft. Type at 18 GHz
VSWR	<1.3, DC to 18 GHz
Nominal Capacitance	29 pF/ft.
Velocity of Propagation	70%
Shield Effectiveness	Greater than 110 dB
Length	24”
Connector Corrosion (salt spray)	MIL-STD-202, method 101, test cond. B 5% salt solution.
Connector Durability:	500 connections Minimum
Jacket Colour	Blue
Operating Temperature	-45°C to +85°C
