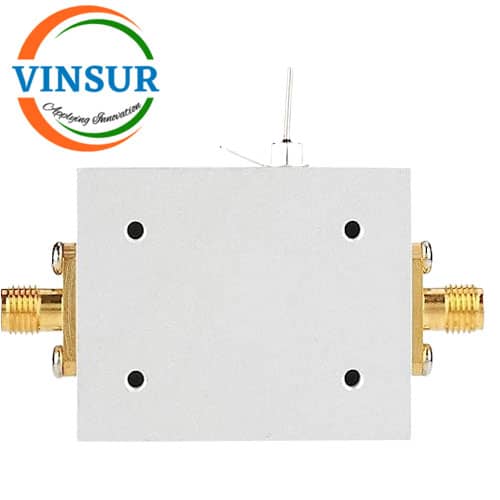

VSW-RB-9210-SF — RF BIAS TEE(900-2100MHZ, SMA FEMALE)

SKU: VSW-RB-9210-SF Category: RF Bias Tee Tags: 900-2100Mhz, RF BIAS TEE, RF PASSIVE DEVICE, SMA Female

Description

ELECTRICAL & MECHANICAL SPECIFICATIONS
Frequency(MHz)	900-2100MHz
Insertion Loss(dB)	≤0.45
Voltage	48 VDC(Max)
Current	200mA
VSWR	≤1.20
Impedance	50 ohm
Power Rating(W)	20W (Max)
Operating Temperature (deg)	-30～+55℃
Connector	SMA Female
Relative Humidity	5%-95%
Dimensions	See Mechanical Drawing
