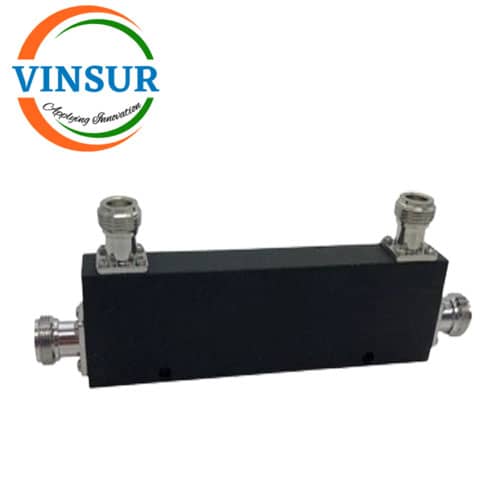

VSW-DC-XX-760-160-NF — DUAL DIRECTIONAL COUPLER
- RF Passive Device
- Dual Directional Coupler
- 698-6000MHz
- N Female
Description
| COUPLING(DB) | 6 | 10 | 15 | 20 | 30 |
| Accuracy(dB) | ±1.5(698-270) ±1.8(2700-6000) |
±1.8(698-2700) ±2.2(2700-6000) |
±2.5(698-270) ±3(2700-6000) |
±2.8(698-270) ±3.2(2700-6000) |
±3.5(698-270) ±3.6(2700-6000) |
| Insertion Loss(dB) | ≤2.0 | ≤1.2 | ≤0.8 | ≤0.5 | ≤0.4 |
| Isolation | ≤24(698-270) ≤18(2700-6000) |
≤26(698-270) ≤22(2700-6000) |
≤28(698-270) ≤25(2700-6000) |
≤38(698-270) ≤32(2700-6000) |
≤48(698-270) ≤42(2700-6000) |
| Freq(MHz) | 698-6000MHz | ||||
| VSWR | ≤1.30(698-270); ≤1.5(2700-6000) | ||||
| PIM Rating(dBc) | -160dBc@2x43dBm | ||||
| Power Rating(W) | 200W (average Per Port) | ||||
| Impedance | 50 ohm | ||||
| Connector | N-female | ||||
| Color | Black | ||||
| Relative Humidity | 5-95% | ||||
| Temperature(℃) | -25°C to +75°C | ||||
| Weight(kg) | 0.40 | ||||
