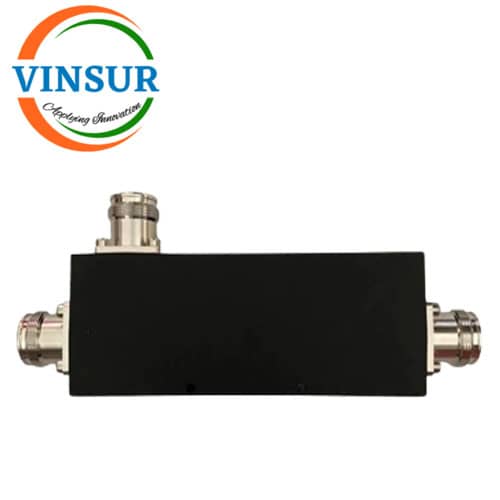

VSW-DC-XX-6038-161-41F –10DB DIRECTIONAL COUPLER
- RF Passive Device
- RF Coupler
- 600-3800MHz
- 4.3/10-female
Description
| COUPLING(DB) | 3 | 5 | 6 | 8 | 10 | 15 | 20 | 30 | 40 | 50 |
| Accuracy(dB) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.2 | ±1.4 | ±1.4 | ±1.7 | ±2.5 | ±3.5 |
| Insertion Loss(dB) | ≤2.20 | ≤2.0 | ≤1.75 | ≤1.30 | ≤0.80 | ≤0.50 | ≤0.40 | ≤0.40 | ≤0.30 | ≤0.30 |
| Isolation | ≧21 | ≧23 | ≧24 | ≧26 | ≧28 | ≧30 | ≧33 | ≧43 | ≧52 | ≧60 |
| Freq(MHz) | 600-3800MHz | |||||||||
| VSWR | ≤1.30 | |||||||||
| PIM Rating(dBc) | -161dBc@2x43dBm | |||||||||
| Power Rating(W) | 300W (Average Per Port) | |||||||||
| Impedance | 50 ohm | |||||||||
| Connector | 4.3/10-female | |||||||||
| Color | Black | |||||||||
| Relative Humidity | 5-95% | |||||||||
| Operating Temperature(℃) | -25°C to +75°C | |||||||||
| Weight(kg) | 0.68 | |||||||||
