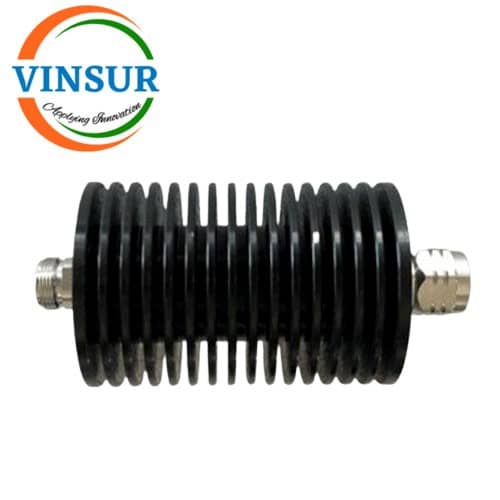

VSW-ATT50-20-3-NMF — 50W 20DB RF ATTENUATOR (DC-3GHZ, N MALE TO N FEMALE)

  • RF Attenuator
  • RF Coaxial Attenuator
  • DC-3GHz
  • Attenuation(20dB)
  • N Male To N Female

Click Here to get Datasheet

SKU: VSW-ATT50-20-3-NMF Category: Tags: , , , ,
Description
ELECTRICAL & MECHANICAL SPECIFICATIONS
Attenuation(dB) 20
Accuracy(dB) ±1.5
Freq(MHz) DC-3GHz
VSWR ≤1.25
Power Rating(W) 50W@25℃ (average)
Impedance 50 ohm
Connector N Male to N Female
Color Black
Operating Tem(℃) -40°C to +80°C
Weight(kg) 0.56(approx.)
