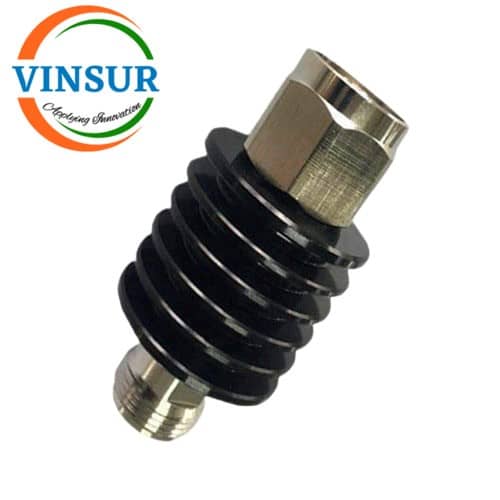

VSW-ATT10-XX-8-NMF — 10W 40DB RF ATTENUATOR (DC-8GHZ, N-MALE TO N-FEMALE)

  • RF Attenuator
  • RF Coaxial Attenuator
  • DC-8GHZ
  • Attenuation(20-40dB)
  • N Male To N Female

Click Here to get Datasheet

SKU: VSW-ATT10-XX-8-NMF Category: Tags: , , , ,
Description
ELECTRICAL & MECHANICAL SPECIFICATIONS
Attenuation(dB) 20 40
Accuracy(dB) ±0.6 ±0.8
Freq(MHz) DC-8GHz
VSWR ≤1.25
Power Rating(W) 10W@25℃ (average)
Impedance 50 ohm
Connector N Male to N Female
Color Black
Operating Tem(℃) -35°C to +65°C
Dimension(mm) See Drawing
