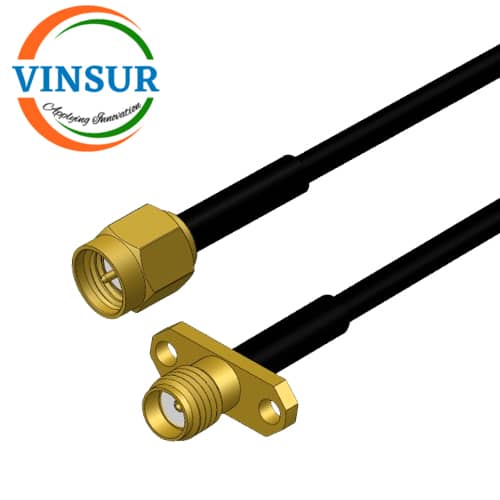

VSW-61415F424FAF-70A — RF CABLE ASSEMBLY – 50 OHMS , SMA MALE, STRAIGHT TO SMA FEMALE, STRAIGHT 2-HOLE FLANGE FOR LMR100 CABLE
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- LMR100 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Mounting Feature | 2-hole Flange |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ohms |
| Cable Type | For LMR100 |
| VSWR | ≤1.2 |
| Length | 70mm |
| Temp (Max Degrees Celsius) | +85 C° |
| Temp (Min Degrees Celsius) | -40 C° |
