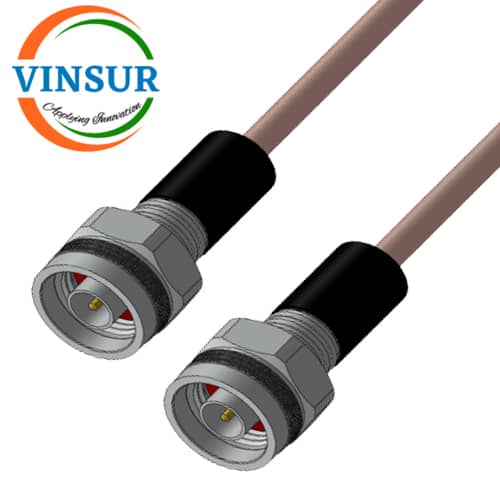

VSW-61125N115NHQ-2D – N-TYPE MALE STRAIGHT TO N-TYPE MALE STRAIGHT FOR RG-400 CABLE ASSEMBLY
- RF Cable Assembly
- N-type Cable Assembly
- N-type to N-type Cable Assembly
- FOR RG-400
Description
| SPECIFICATION | |
| RF Series 1 | N-type |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N-type |
| Orientation 2 (body) | Straight |
| Gender 2 | Plug (Male) |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC-6Ghz |
| Impedance | 50 Ohms |
| Cable Type | RG-400 |
| VSWR | ≤1.2 |
| Length | 2Meter |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
