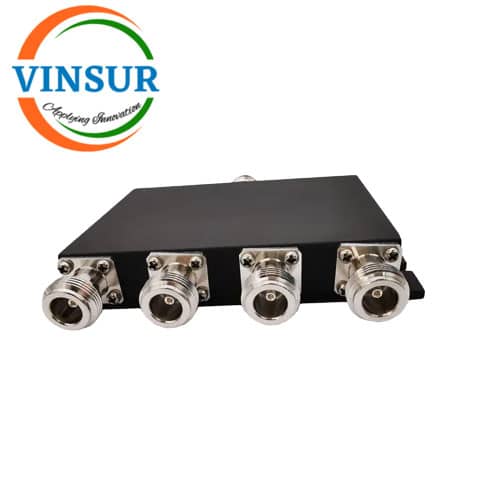

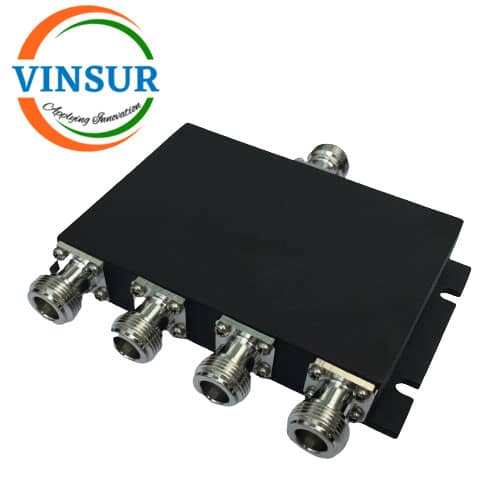

VSW-4PDS-2.7-NF — 4WAY POWER DIVIDER (698-2700MHZ)

  • RF Passive Device
  • RF Power Divider
  • 698-2700MHz
  • 1:4 way
  • N-female

Click Here to get Datasheet

SKU: VSW-4PDS-2.7-NF Category: Tags: , , , ,
Description
SPECIFICATION
Frequency 698-2700MHz
Impudence 50Ω
Temperature -35℃~+75℃
Weight 0.4Kg
Dimensions 120*107*21mm
Power 50W
Insertion Loss ≤0.5dB (Split6.0dB)
Isolation ≥20dB
VSWR ≤1.3
Connector Type N Female
