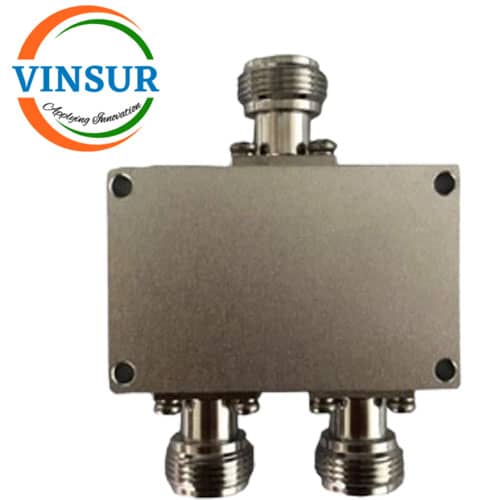

VSW-2DS-9MHZ-NF — 2WAY RF POWER SPLITTER 50-900MHZ N FEMALE

SKU: VSW-2DS-9MHZ-NF Category: RF POWER SPLITTER Tags: 1:2 way, 50-900MHz, 50Ω, N-Female, RF PASSIVE DEVICE, RF Power Splitter

Description

SPECIFICATIONS
Split Chanel	2-way
Split Loss(dB)	3.0
Insertion Loss(dB)	≤1.7dB
Freq(MHz)	50-900MHz
VSWR	≤1.40
Isolation(dB)	≥16
Amplitude Balance	≤1.0dB
Phase Balance	8°
Power Rating(W)	0.5W CW as Splitter
Impedance	50 ohm
Connector	N Female
Surface Finishing	Sandblasting natural color conductive oxide
Dimensions(mm)	See Mechanical Drawing
Operating Temperature(℃)	-40°C to +85°C
Weight(kg)	0.20(approx.)
