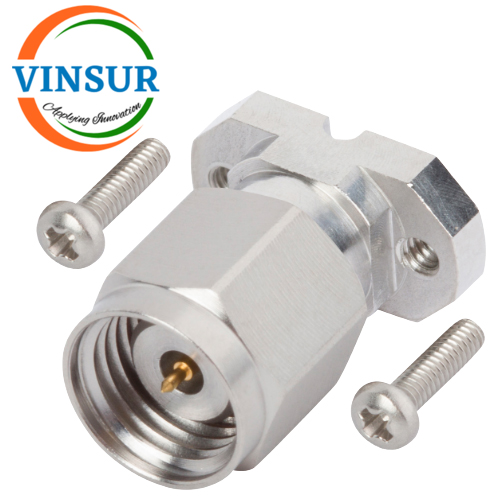

VSW-11S11340 — RF CONNECTOR – 50OHMS , 1.85MM MALE , STRAIGHT, 2-HOLE FLANGE SCREW TYPE CONNECTOR
- RF Connectors
- 1.85mm Connectors
- 1.85mm Male
- PCB Mount
- Screw Type
- 4.76mm Screw
- 50Ω
Description
| CONNECTOR SPECIFICATION | |
| Connector name | 1.85mm |
| Gender | Plug(Male) |
| Orientation | Straight |
| Mounting Type | PCB Vertical Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| Number of Ports | Single |
| Max Frequency | DC to 65GHz |
| Temperature Rating | -65°C to +165°C |
