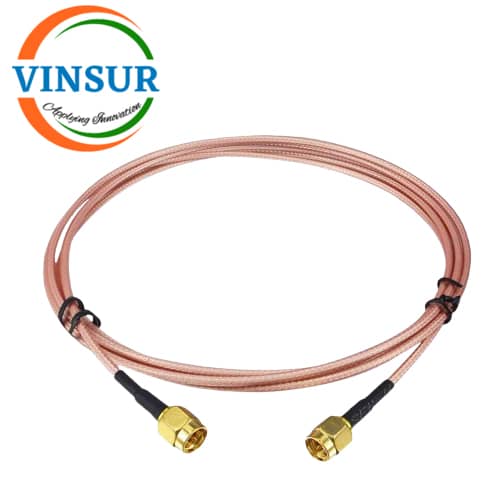

SMA MALE STRAIGHT TO SMA MALE STRAIGHT FOR RG 316DS CABLE ASSEMBLY LENGTH OF 3.05 METER

  • RF Cable Assembly
  • SMA Cable Assembly
  • SMA to SMA Cable Assembly
  • RG316DS Cable

Click Here to get Datasheet



Description
SPECIFICATION
RF Series 1 SMA
Gender Plug (Male)
Orientation1 (body) Straight
Body 1 Brass, Gold
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (body) Straight
Body 2 Brass, Gold
Frequency DC-6Ghz
Impedance 50 Ohms
VSWR ≤1.25
Cable Length 3.05 meters
Temperature Rating -40°C ~ +85°C
CABLE SPECIFICATION
Cable Diameter 2.92 ±0.2
Cable Type RG-316DS(Double Shielded)
Suitable for frequencies up to 12 GHz
Weight 0.023 Kg/m
Impedance 50Ω
