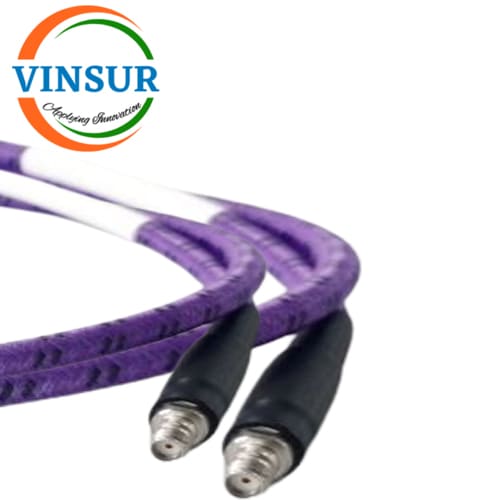

SMA FEMALE, STRAIGHT TO SMA FEMALE, STRAIGHT 1Meter TESTING CABLE ASSEMBLY
- RF Testing Cable Assembly
- SMA Testing Cable Assembly
- SMA to SMA Testing Cable Assembly
- 50Ω
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 26.5Ghz |
| Impedance | 50 Ohms |
| Cable | Ultra low loss phase & amplitude stable |
| Cable Type | Armoured |
| VSWR | ≤ 1.25:1 |
| Length | 1Meter |
| Cycling time | Â 500 |
