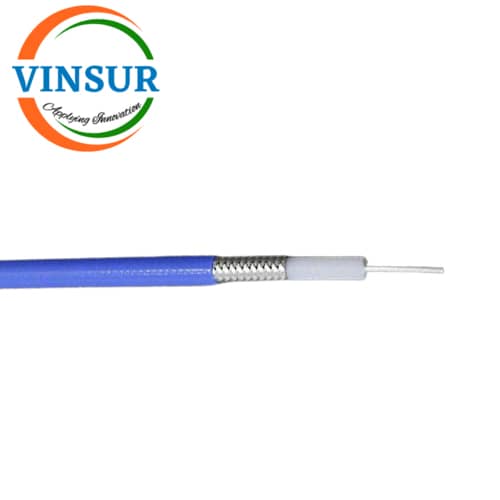

RG402 (0.141) SEMI-FLEXIBLE COAXIAL CABLE (VSW-RG402-SFCC)

SKU: VSW-RG402-SFCC Category: Semi flex Cables Tags: RF Coaxial Cable, RG 402 (0.141), SEMI-FLEXIBLE COAXIAL CABLE

Description

CONSTRUCTION SPECIFICATION
Item	Material	Diameter
Inner Conductor	Silver plated copper wire	0.94 mm / 0.037 in
Dielectric	Solid PTFE	2.95 mm / 0.116 in
Outer Conductor	Tin-soaked tin plated copper	3.60 mm / 0.141 in
Jacket	Fluoropolymer(Blue)	4.10 mm / 0.161 in

ELECTRICAL SPECIFICATION
Impedance	50 ± 2 Ω
Capacitance	94 pF/m
Velocity of signal propagation	71%
Signal delay	4.8 ns/m
Working voltage, AC r. m. s.	2500 max
Working voltage, DC	4000 max
Suitable for frequencies	up to 20 GHz
Shielding effectiveness	<-130dB/m
Single bend radius	10mm
Multiple bend radius	40mm
Weight	52 kg/km
Temperature rating	-40 / +165°C
V.S.W.R	<1.2
