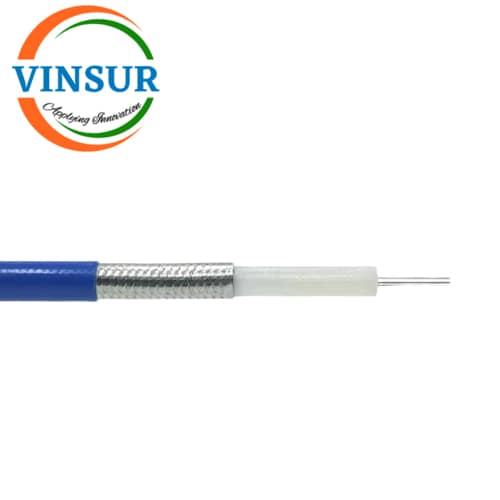

RG401 (0.250) SEMI-FLEXIBLE COAXIAL CABLE (VSW-CB-SF-250)
- RF COAXIAL CABLE
- RG 401 (0.250)
- SEMI-FLEXIBLE COAXIAL CABLE
Description
| CONSTRUCTION SPECIFICATION | Â | |
| Item | Material | Diameter |
| Inner Conductor | Silver Plated Copper | 1.63 mm |
| Insulation | PTFE | 5.27 mm |
| Outer Conductor | Tinned Copper braid | 6.20 mm |
| Jacket | FEP | 7.00 mm |
| ELECTRICAL SPECIFICATION | |
| Impedance | 50 Ohm |
| Capacitance | Nom. 95 pF/m |
| Velocity | 70 % |
| Shielding Effectiveness | 100 dB |
| Low PIM | <= -160 dBc
@ 700MHz 900MHz, 1800MHz, 1900MHz |
| VSWR | <= 1.15@0-3 GHz, <=1.25@3-6GHz |
| Min bend Radius | 20 mm |
| Weight | 140g/m |
| Operating Temperature | -55 to 125 degree |
| Frequency Range | 19GHz |
| Â | PERFORMANCE BY FREQUENCY BAND | |||
| Description | Â | Units | ||
| Frequency | 1 | 10 | 20 | GHz |
| Attenuation, Max | 7.5 | 33 | 48 | dB/100ft |
| Â | 24.61 | 108.27 | 157.48 | dB/100m |
| Input Power (CW), Max | 1.400 | |||
| Input Power (CW), Max | 1.400 | 350 | 200 | Watts |
