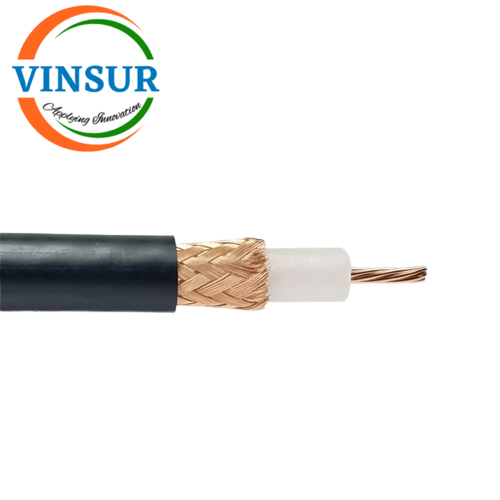

RG-213 COAXIAL CABLE(VSW-RG213-CC)
- RF COAXIAL CABLE
- RG 213 COAXIAL CABLE
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Centre Conductor | Stranded Bare Copper Wire | 2.29mm |
| Dielectric | Solid PE | 7.24mm |
| Braid | Bare Copper Wire | 7.98mm |
| Jacket | PVC (Black) | 10.29mm |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 1 GHz |
| Impedance | 50Ω |
| Capacitance | 101 pF/m |
| DC Resistance (IC) | <5.8 Ω/km |
| DC Resistance (OC) | <5.0 Ω/km |
| Velocity Ratio | > 66% |
| Dielectric Strength | 1000 VCA |
| Min. Bending Radius | 51 mm |
| Nominal Weight | 0.14 Kg/m |
| Tensile Strength | 12.5 N/mm2 |
| Elongation at Break | 150% |
| Temp. Range | -25°C to +85°C |
| ATTENUATION | |
| FREQUENCY (MHz) | ATTENUATION (dB/100m) |
| 1 | 0.59 |
| 10 | 2.03 |
| 50 | 4.92 |
| 100 | 6.86 |
| 200 | 9.84 |
| 400 | 15.75 |
| 700 | 21.33 |
| 900 | 24.94 |
| 1000 | 30.18 |
