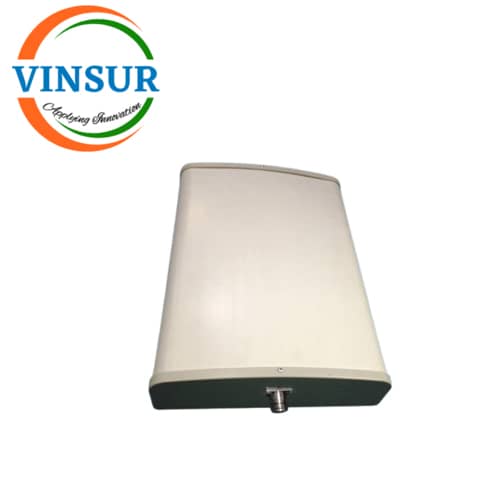

Panel Antenna(380-430MHz 10dBi)

P/N : VSW-PA-10Dbi-430MHz

  • RF Antenna
  • Antenna Type : Patch Panel Antenna
  • Frequency : 380-430 MHz
  • Gain : 10dBi

 Click here to get Data Sheet

Description
ELECTRICAL SPECIFICATIONS
Frequency range (MHz) 380-450
Polarization ±45°
Gain (dBi) 10
Electrical Down tilt (°) 0
HBW (°) 85±3
VBW (°) 38±3
Front-to-back ratio (dB) ≥15
Cross-polar discrimination (dB) ≥15(±60°≥10)
Isolation (dB) ≥22
Impedance (Ω) 50
VSWR ≤1.5:1
Maximum power (W) 200
Lighting protection DC Grounding
MECHANICAL SPECIFICATIONS
Connector N-Female
Connector position Bottom
Height/width/depth (mm) 400*270*85
Weight (Kg) 10
Radom material ABS
Radom color Gray
Operating temperature (℃) -40℃ -60℃
Rated wind velocity (m/s) 60
Suitable pole diameter (mm) Φ50
