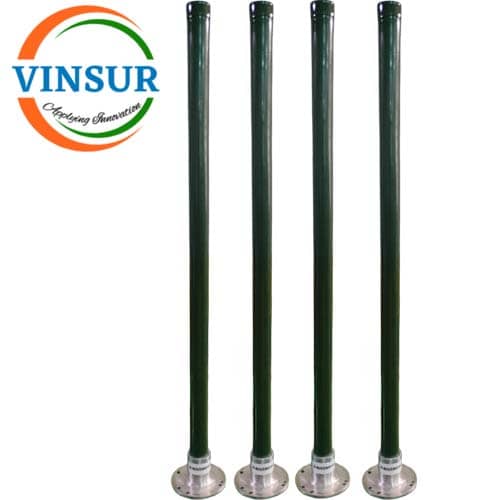

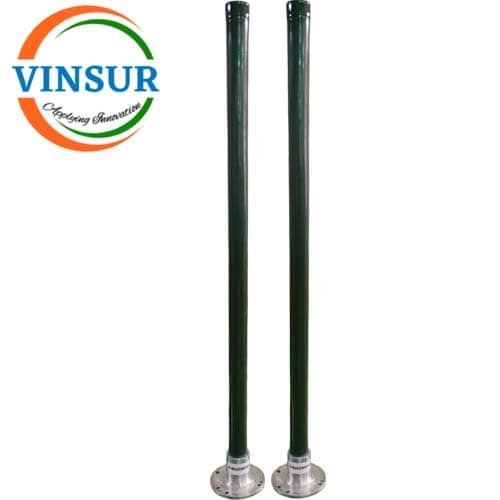

Omni-Directional Antenna(1100-1500MHz 11dBi)
P/N : VSW250091-AN
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : 1100-1500MHz
- Gain : 11dBi
Applications:
- Aviation Surveillance & ADS-B Tracking
- UAV & Tactical Drone Ground Stations
- Specialized Wireless Video Relays
- Satellite Communication Downlinks
Click here to get Data Sheet
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 1100-1500MHz |
| Gain | 11dBi |
| VSWR | 1.5:1 Max |
| H Plane BW | 360° |
| E Plane BW | 28°±2 |
| Polarization | Vertical |
| Max. Power Input | 100W |
| Impedance | 50 Ω |
| Lightning Protection | DC Grounded |
| Connector Termination | N(Female) |
| Radom Material | Fiberglass |
| Mounting Hardware | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Dimension (mm) | Ø25 |
| Length (mm) | 730mm |
| Gross Weight | 300g |
| Operating Temperature | 40℃ to+70℃ |
| Rated Wind Velocity | 100km/hr |
