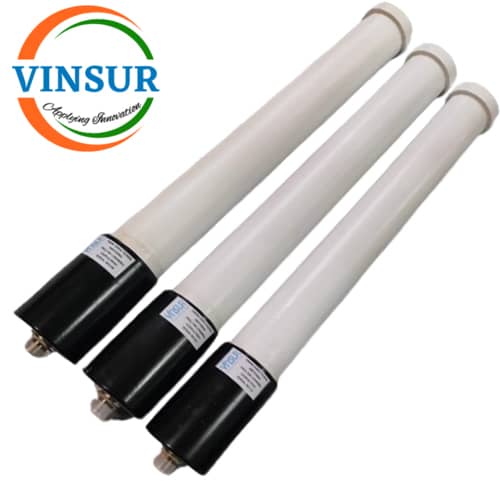

Omni-Directional Antenna(698-4200MHz 6-9dBi)
P/N : VSW-11H254844
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : 698-4200MHz
- Gain : 6-9dBi
Applications:
- Military & Defense Communications
- UAV & Drone Ground Stations
- Mobile Communication & Cellular Boosters
- Industrial IoT & Telemetry
Click here to get Data Sheet
Description
| ELECTRICAL & MECHANICAL SPECIFICATION | |
| Frequency (MHz) | 698-4200 |
| Gain (dBi) | 6-9dBi |
| VSWR (Max) | 1.5 : 1 |
| H Plane BW (°) | 360 |
| E Plane BW (°) | 28±2 |
| Polarization | VERTICAL |
| Max. Power Input (Watts) | 100 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC Grounded |
| Connector Termination | N(Female) |
| Dimension (mm) | Ø40 |
| Length (mm) | 450mm |
| Radom Material | UPVC |
| Gross Weight (Kg) | ≈2±0.5 |
| Mounting Hardware | MS Galvanized & Powder Coated |
| Mounting Style | Tower and Pole |
| Supporting Pole Diameter | 1-1.5 Inches/40-60mm |
| Wind Speed (km/hr) | 120 |
