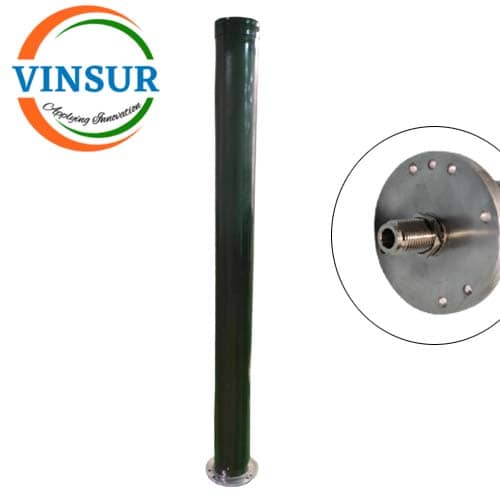

Omni-Directional Antenna (860-930MHz 6-7dBi)
P/N : VSW260068-AN
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : 860-930MHz
- Gain : 6-7dBi
Applications:
- LoRaWAN Gateways
- RFID Asset Tracking
- Industrial telemetry & SCADA
Click here to get Data Sheet
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 860-930MHz |
| Band width | ±5MHz |
| Gain | 6-7dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 12° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ω |
| Connector | N Female |
| Antenna Radom Material | Fiberglass |
| Mount Way | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Antenna Dimension | Φ50x730mm |
| Weight | 590g |
| Operating Temperature | 40℃ to+70℃ |
| Rated Wind Velocity | 100km/hr |
