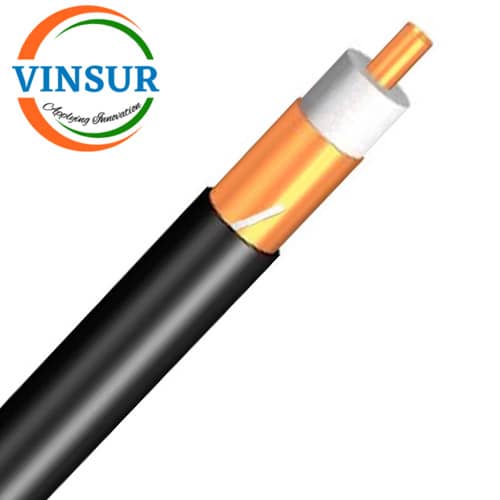

7/8〃RADIATION LEAKY CABLE (VSW-7/8-RLC)

SKU: VSW-7/8-RLC Category: 7/8 " CABLES Tags: 7/8〃RADIATION LEAKY CABLE, RF Coaxial Cable

Description

CABLE CONSTRUCTION MATERIAL MM(IN)
Inner conductor	Copper Tube	9.00 mm
Dielectric	Physical Foam Polyethylene	22.30 mm
Outer conductor	Corrugated Copper Tube	24.90 mm
Sheath	Low Smoke Halogen-free Fire-retardant	27.50 mm

ELECTRICAL CHARACTERISTICS
Characteristic Impedance	50±2Ω	Nominal Value
Transmission Rate	88%	Nominal Value
Capacity	76pF/m	Nominal Value
Insulation Resistance	5000MΩ·km	DC 500V, 1Min, Minimum.
Insulation Dielectric Strength	10000V	Continue 1Min, DC
Sheath Spark Test	8000V	AC, Valid Value
DC-resistance	1.50Ω/km	Inner conductor Max.
DC-resistance	3.50Ω/km	Outer conductor Max.
Single Bending Radius	250mm	Min.
Repeated Bending Radius	300mm	Min.
Number of Bends	15 times	Min.
Tensile resistance	1300N	Max
