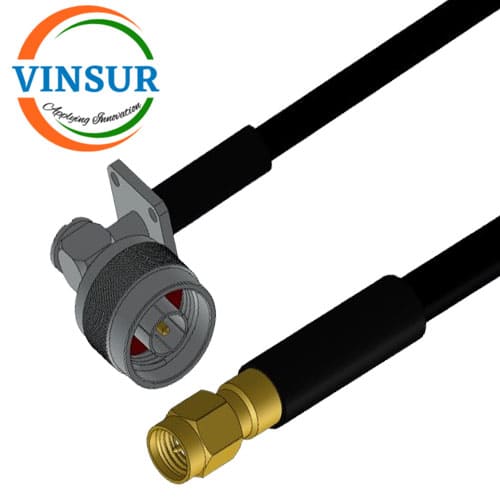

614101334A-1.5D — 50OHMS , SMA MALE, STRAIGHT TO N MALE, RIGHT ANGLE 4 HOLE FLANGE FOR VINSURWAVES-240FR CABLE OF LENGTH 1.5 METER
- RF Cable Assembly
- N-type Cable Assembly
- N-type to SMA Cable Assembly
- VINSURWAVES-240FR
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | N |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Right Angle |
| Mounting Features | 4-hole flange Mount |
| Frequency | DC-6Ghz |
| Impedance | 50 Ohms |
| Cable Type | VINSURWAVES-240FR |
| VSWR | ≤1.3 |
| Length | 1.5Meter |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
