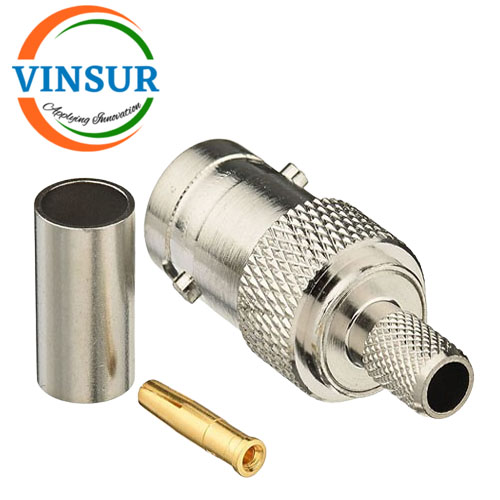

11321015 -- RF CONNECTOR - 50OHMS , BNC FEMALE , STRAIGHT , CRIMP TYPE , RG58, RG142, LMR195,LMR200 CABLE - Image 1

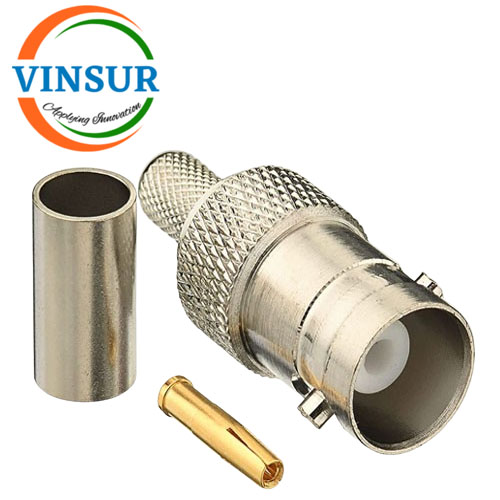

11321015 -- RF CONNECTOR - 50OHMS , BNC FEMALE , STRAIGHT , CRIMP TYPE , RG58, RG142, LMR195,LMR200 CABLE - Image 2

Click to enlarge

11321015 -- RF CONNECTOR - 50OHMS , BNC FEMALE , STRAIGHT , CRIMP TYPE , RG58, RG142, LMR195,LMR200 CABLE

11321015 -- RF CONNECTOR - 50OHMS , BNC FEMALE , STRAIGHT , CRIMP TYPE , RG58, RG142, LMR195,LMR200 CABLE - Image 2

11321015 — RF CONNECTOR – 50OHMS , BNC FEMALE , STRAIGHT , CRIMP TYPE , RG58, RG142, LMR195,LMR200 CABLE

RF Connectors
BNC Connectors
Jack (Female)
RG58/142/LMR100/195 Cable
50Ω

Click Here to get Datasheet

Click Here to get Drawing

SKU: 11321015 Category: FOR RG58/RG142/LMR195/LMR200 CABLE Tags: BNC Connectors, FOR RG 58 CABLE, RF connectors

Description
Reviews (0)

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	RG58/142/LMR100/195
VSWR	≤ 1.3
Max Frequency (GHz)	DC to 4Ghz
Polarity	Standard
Min. Temp. (Celsius)	-40°C
Max. Temp. (Celsius)	+85°C
