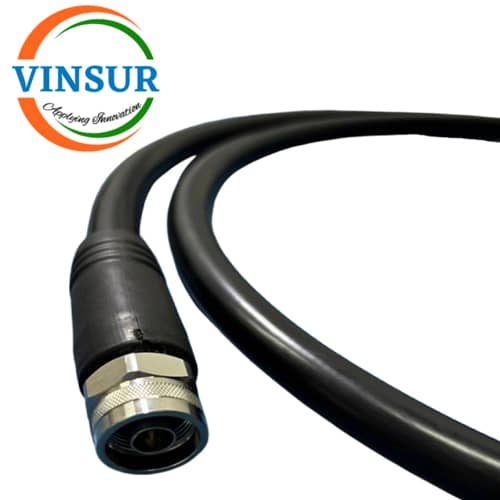

VSW250175-CA — N MALE STRAIGHT TO N MALE STRAIGHT FOR LMR600-UF CABLE ASSEMBLY LENGTH OF 2METER
- RF Cable Assembly
- N-type Cable Assembly
- N-type to TNC Cable Assembly
- LMR-600 Cable
Description
| Â SPECIFICATIONÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 8GHz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Length | 2meter |
| Cable Assembly Weight | 700 grams |
| Cable Type | LMR600-UF |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
