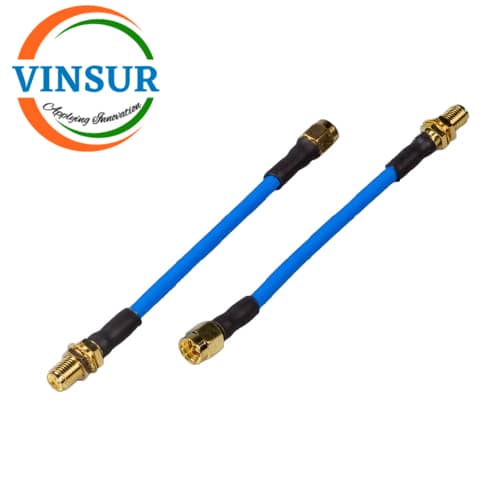

VSW250174-CA — SMA MALE STRAIGHT TO SMA FEMALE STRAIGHT FOR RG405 T-FLEX CABLE ASSEMBLY LENGTH OF 77MM
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG405 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | SMA |
| Orientation 2 (body) | Jack (Female) |
| Gender 2 | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Impedance | 50 Ohms |
| Frequency | DC-18GHz |
| Mounting Feature | Bulkhead |
| VSWR | ≤1.2 |
| Cable Length | 77mm |
| CABLE SPECIFICATION | |
| Cable Type | RG405 T-flex |
| Cable Diameter | 0.104” |
| Cut-off Frequency | 60GHz |
| Weight (lbs./ft) | 0.015 (0.022 (kg/m) |
| Temperature rating | -65°C to +125°C |
