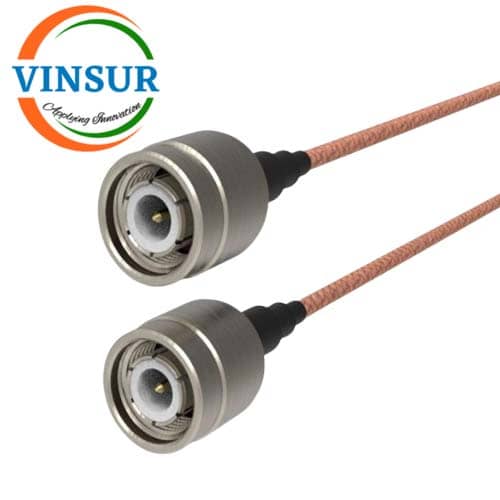

VSW250154-CA — TNC MALE STRAIGHT TO TNC MALE STRAIGHT FOR RG-316 CABLE ASSEMBLY LENGTH OF 1METER
- RF Cable Assembly
- TNC Cable Assembly
- TNC to TNC Cable Assembly
- RG-316 Cable
Description
| SPECIFICATION | |
| RF Series 1 | TNC |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body 1 | Brass, Nickel Plating |
| RF Series 2 | TNC |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body 2 | Brass, Nickel Plating |
| Frequency | DC-3Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Cable Length | 1 Meter |
| Temperature Rating | -55°C to +200°C |
| CABLE SPECIFICATION | |
| Cable Diameter | 2.49 ±0.1 |
| Frequency | 3GHz |
| Impedance | 50Ω |
| Cable Type | RG316 |
