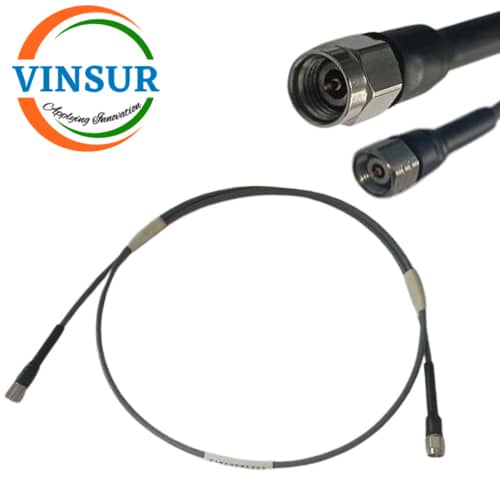

VSW250153-TCA — 2.4mm MALE STRAIGHT TO 2.9mm MALE STRAIGHT for VSW360 TESTING CABLE ASSEMBLY LENGTH OF 3FT(40GHz)

SKU: VSW250153-TCA Category: 2.4mm to 2.92mm Testing Cable Assembly Tag: Rf Testing Cable Assembly

Description

SPECIFICATION
RF Series 1	2.4mm
Gender	Plug(Male)
Orientation1 (body)	Straight
RF Series 2	2.9mm
Gender 2	Plug (Male)
Orientation 2 (body)	Straight
Body Finish	Nickel
Body Material	Passivated Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium Copper
Frequency	DC to 40Ghz
Impedance	50 Ohms
Velocity of Propagation	76%
Input Power	550W
VSWR	1.4:1
Length	3 Foot(36Inch)
Operating Temperature	-45°C to +125°C
CABLE SPECIFICATION
Cable Type	VSW360 Cable
Impedance	50 Ohms
Inner Conductor	Solid SPC	0.91mm
Dielectric	LD-PTFE	2.50mm
Outer Conductor	SPC Strip	2.66mm
Outer Shield	SPC Braid	3.11mm
Jacket	Grey PFA or Custom	3.60mm
Static Bend Radius	18mm
Dynamic Bend Radius	36mm
Weight	0.033Kg/m
Installation &Operating Temperature Range	55℃~+165℃
Frequency Range	40GHz
Cut-off Frequency	46 GHz
