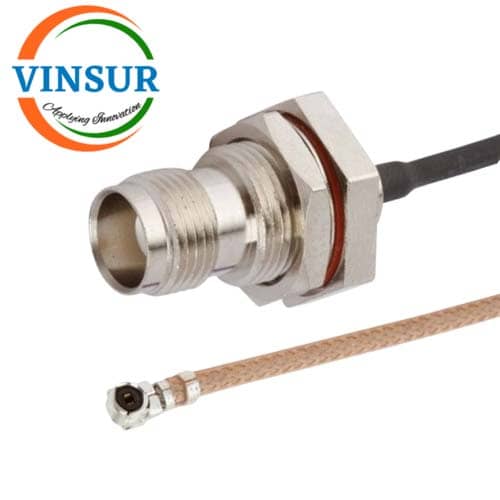

VSW250145-CA — AMC MALE RIGHT ANGLE TO TNC FEMALE STRAIGHT BULKHEAD RG-178 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- TNC Cable Assembly
- TNC TO AMC Cable Assembly
- RG178 Cable
Description
| SPECIFICATION | |
| RF Series 1 | AMC |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | TNC |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Frequency | DC to 3Ghz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG178 |
| Cable Diameter | 1.80mm |
| Frequency | DC to 5Ghz |
| Impedance | 50 Ohms |
| Length | 6Inch |
| Operating Temperature | -40°C to +200°C |
