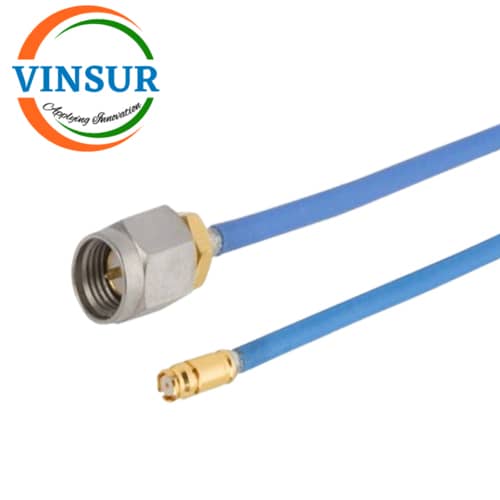

VSW250125-CA — SMA MALE STARIGHT TO SMP MALE STARIGHT FOR RG405 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMP Cable Assembly
- RG405 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMP |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Stainless Steel/Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 18Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG405(0.086) |
| VSWR | ≤1.3 |
| Length | 6” Inch |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
